Why the Delay?
This newsletter is long overdue, and I’ll be honest: I kept delaying it because I was always one step away from the next breakthrough. I wanted to share something fully finished, but I kept moving the goalpost. No more waiting—here’s what I’ve been (slowly) working on over the past two months: a complete overhaul of the turntable section, where bricks get sorted into bins.
Let’s dive into the updates, covering both hardware (the bricks) and software (the Build HAT and Python code).
1. Hardware: A Fresh Start
I’ve mentioned before that I urgently needed to move away from EV3 parts. While they’re easier to work with for this kind of project, they’re outdated, hard to find, and expensive. The new turntable design now uses a Lego Technic Large Motor, which is currently one of the easiest Lego motors to source.
Key Improvements:
- Simplified Design: The new turntable uses far fewer parts than before. I’m still using the “Bucket Wheel” as parts donor, but I’m confident many components can be swapped for similar alternatives (something I’ll explore later).
- Reliability: I rebuilt the turntable twice—earlier prototypes seemed perfect in theory but failed in practice. This version has been running smoothly without issues.
What’s Left to Do:
- Stability Testing: I need to load the bins and confirm that the smaller footprint remains stable. I’m optimistic, but only testing will tell.
- Calibration: Since this design no longer includes a color sensor, it will rely on detecting motor stalls for calibration. Lego uses this approach often, but it’s surprisingly tricky with the Build HAT.
2. Software: The Build HAT Experience

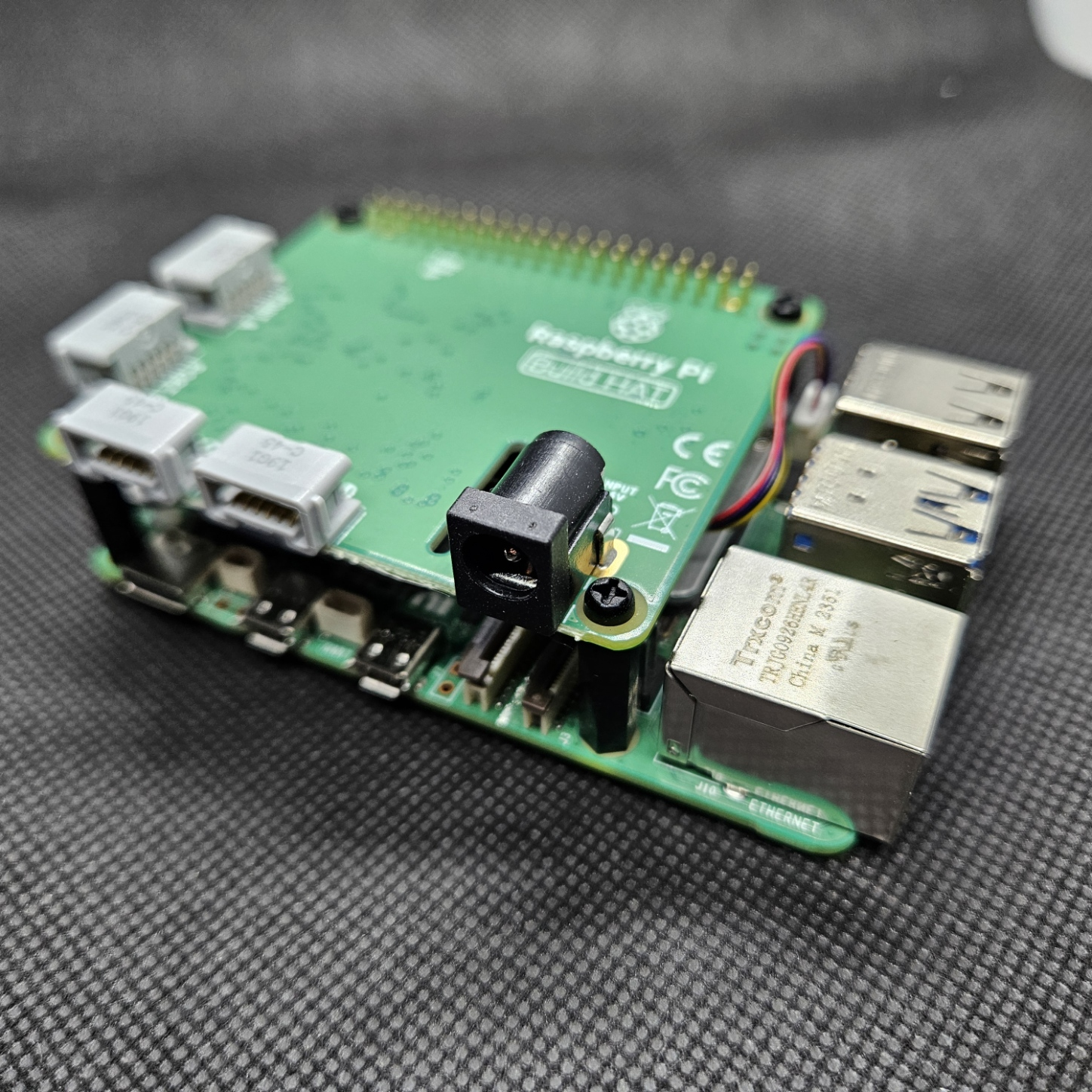

The Lego motor connects to a Build HAT, which interfaces with a Raspberry Pi. Both are accessible and reasonably well-supported, but I’ve hit a few snags:
- The software library is basic and hasn’t seen regular updates.
- The special power supply also doesn’t play nicely with the Raspberry Pi 5.
Nothing deal-breaking, but it’s made me question whether the Build HAT is the best long-term choice. I want hardware that’s affordable and future-proof.
Coding with Claude
I’ve been “vibe coding” with my AI coding buddy, Claude. It’s a fun, unconventional way to write software, but it has its quirks. Claude insisted the code was flawless, yet the turntable wasn’t behaving as expected. With some guidance, we arrived at functional, maintainable code—but it took a few iterations.
3. Next Steps.
- Finalize Calibration: The code is almost there. A week or two more with Claude should iron out the kinks.
- Publish Plans: I’ll model the turntable in Lego Studio and release the plans (and code) for free on Rebrickable.
- Future Updates: The camera section of the sorting machine works well, so I don’t think I will do a big redesign of it. However, for the front section, I’m eyeing designs with a shaker motor, which seem more reliable than my current setup.
Final Thoughts
Progress is slower than I’d like, but it’s progress nonetheless. Thanks for sticking around, and stay tuned for the Rebrickable release!
As always, your feedback is absolutely welcome. Thanks for following along on this journey. Happy sorting, and I look forward to sharing more updates soon!
